Yar Yi Light linear actuator YA180

Yar Yi Light linear actuator YA180

Issue Time:2021-06-14

Yar Yi Light linear actuator YA180

             Yar Yi YA180 series linear actuator is designed for light industry, because of its compact size, metallic gear and proper capacity, YA180 widely used for agricultural machinery, construction, clean sweeping vehicles, ships, automatic window control, assembly line and other applications.

             The following are general features of YA180:

            1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC,

            2. Maximum load: 3,500N in pull/push

            3.Maximum speed at full load: 67mm/s ( load 150N)

            4.The slowest speed at full load: 5mm / s (Load 3,500N)

            5.Stroke: 20~900mm

            6. Minimum dimensions: Stroke + 105 mm (S<300mm)
                                                 Stroke + 120 mm (S>300mm)
            7. Color: Silver gray

            8.  IP rating: IP65

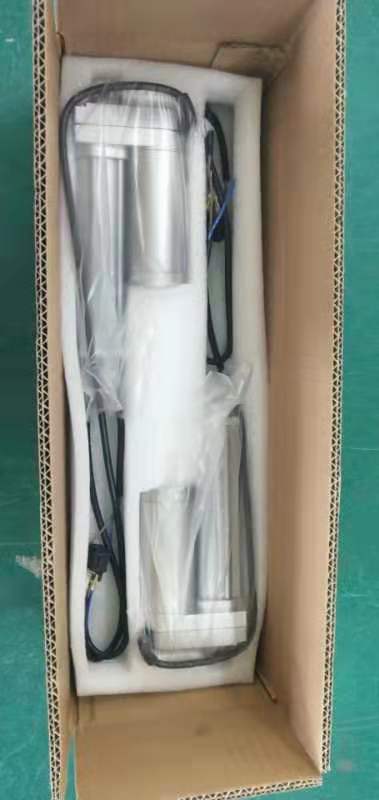

           The picture below is a picture taken by our company when the product was packaged. Customers who are interested in the product and those who are interested in buying the product can refer to it for viewing.
