Yar Yi Hydraulic Cylinder Linear Actuator YA350 For Garbage Truck

Yar Yi Hydraulic Cylinder Linear Actuator YA350 For Garbage Truck

Issue Time:2021-07-07

Yar Yi Hydraulic Cylinder Linear Actuator YA350 For Garbage Truck

GeMinG's HTQ350 series electro-hydraulic linear actuators are designed for heavy duty applications that are developed in harsh environments where high lifting capacity and retention are required. Products are widely used in sanitation trucks, electric three-wheeled agricultural vehicles, yacht outboard machine, lift platform, ship car mechanics etc.
Thr following are YA350's general features:
 1. Voltage of motor: 12V DC, 24V DC
 2. Maximum load: 50,000N
 3. Stroke: 100~600mm
 4. Minimum dimensions: Stroke + 200mm(it will vary according to different load)
 5. Color:black
 6. IP rating: IPX6
 7. Operational temperature range: -20°C~+60°C
 8. Duty cycle: 4min on, 16min off

Model Selection

HTQ350 SeriesLoad±10%(N)Speed±2(mm/S)













Load

50,000

45,000

32,000

25,000

  20,000

 12,000




Speed

6

6

10

5

6

   25

The customer bought the electric actuator because of the characteristics of the product. The customer uses it in the garbage cleaning truck, so that the storage box of the garbage cleaning truck can be turned up and down autonomously, and manual adjustment is no longer required. As long as you lightly press the control button on the garbage cleaning truck, the storage box can be turned over. This application is another step to broaden the application field of this electric actuator. Other customers can learn from this case and transform their own products to make them more convenient and labor-saving, so as to increase sales of their own products.

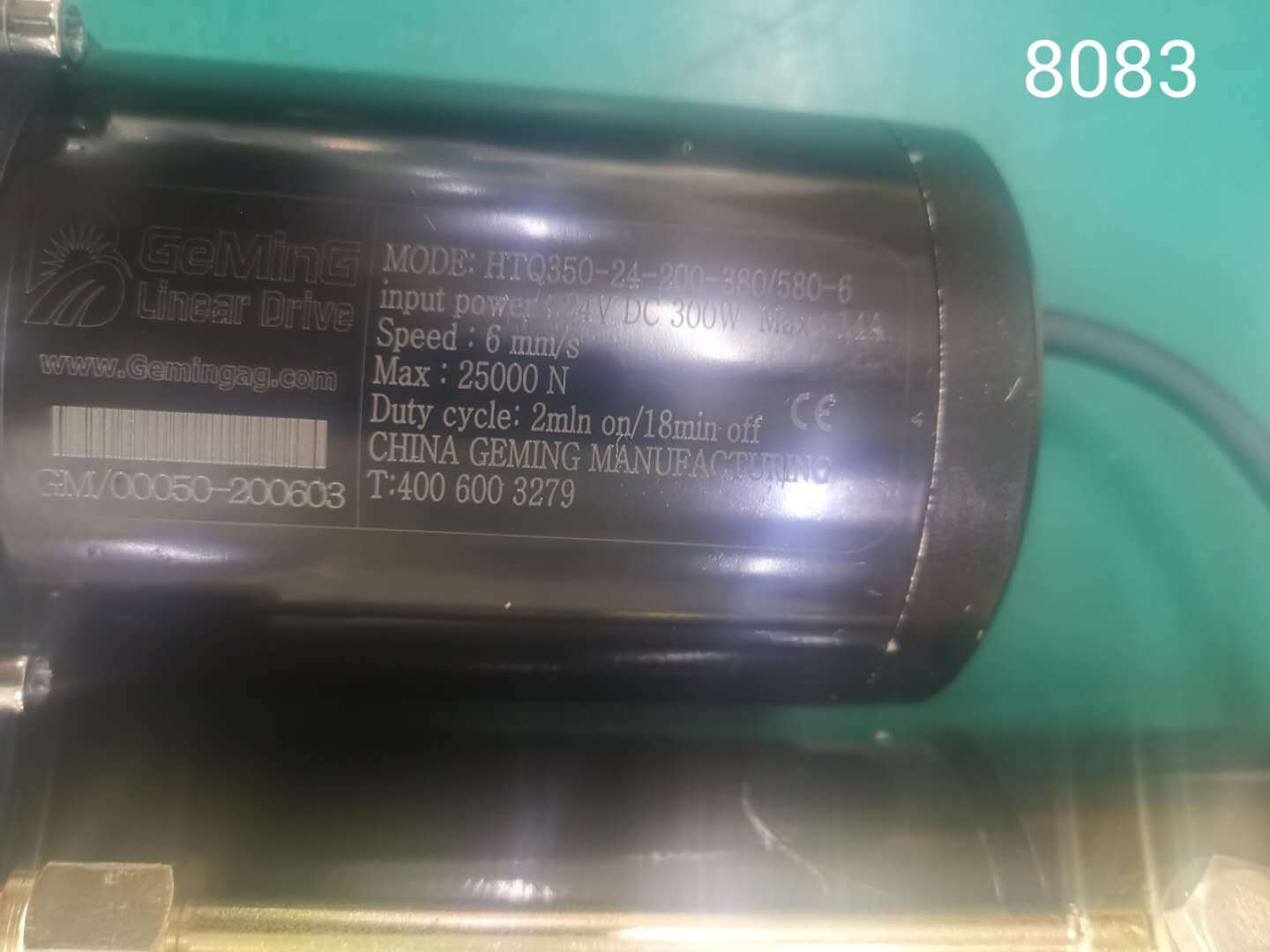

The picture below is a picture taken by workers when the product is shipped for reference and viewing by customers who are interested in the product and customers who are interested in buying the product.
