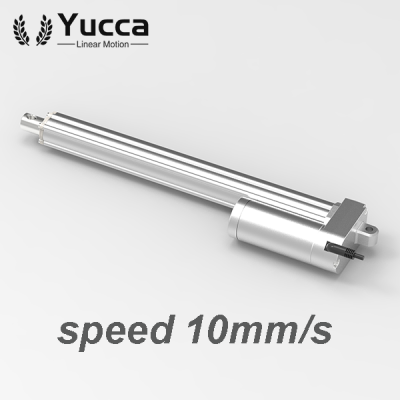

Small dimension electric linear actuator with metal gear load 2700N

Categories	Light linear actuator YA180
Model	YA180
Brand	Yucca
Motor	Worm gear
Color	Silver gray or black
Certification	CE, ROHS, ISO9001-2008
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance
Standard stroke	10mm-800mm
Duty cycle	10%
Commutation	Brush/Brushless
Motor power	50W
Ambient temperature	-25°C~+65°C
FOB port	Ningbo/Shanghai
Terms of Payment	T/T, Paypal
Update Time	March 30,2023

Detail Information

Small eimension electric linear actuator with metal gear load 2700N

General Features
Voltage	12V DC, 24V DC
Stroke	stroke+105mm(stroke＜300mm); stroke+120mm(stroke≥300mm)
Load	2700N
Speed	10mm/s(no load); 6.8mm/s(full load)
IP	65
Stroke	10-800mm
Noise	50db
Matierial	Metallic zinc alloy
Limit switches	Built in
Gear	Metal gear
