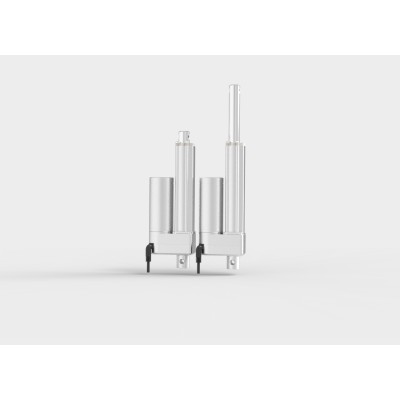

                                                                Yar Yi Light Industry Linear Actuator YA28H

           YA28H miniature linear actuator is default built-in hall sensor. One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,application Design of actuators. The products are small-capacity, compact design, protection grade IP66 Alternatively, YA series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate.

           General Features:

           1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC,

           2. Maximum load: 2,000N in push

           3. Maximum speed at full load: 35mm/s ( load 300N)

           4. The slowest speed at full load: 6mm / s (Load 2,000N)

           5. Stroke: 10~600mm

           6. Minimum dimensions: Stroke + 125 mm (limited to 300 mm stroke or less)

                                                   Stroke + 140 mm (300 mm stroke above)

           7. Color: Silver gray or black

           8. IP rating: IP66D

           9. Operational temperature range: -45°C~+75°C

          10. Operational temperature range at full performance: +5°C~+45°C

          11. Higher duty cycle (25%),

          12. Other options: Hall sensor

          13. High strength metallic zinc alloy housing protects motor and gear

          14. Built-in limit switches (not adjustable)

           Model Selection:


          Drawing:
