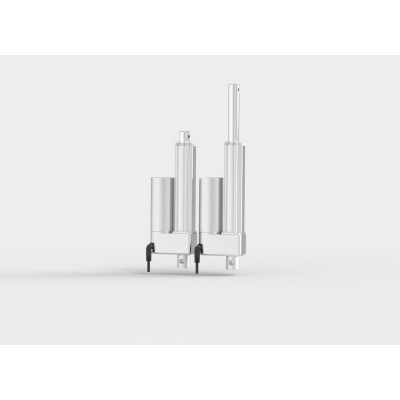

Yar Yi Light Industry Linear Actuator YA280

         YA280 miniature linear actuator is one section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control, application design of actuators. The products are small-capacity, compact design, protection grade IP66 Alternatively, YA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate         General Features:

         1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC,

         2. Maximum load: 3,000N in push

         3. Maximum speed: 67mm/s ( load 150N)

         4. The slowest speed: 6mm / s (Load 3,000N)

         5. Stroke: 30~900mm

         6. Minimum dimensions: Stroke + 125 mm (S<300mm)

                                                 Stroke + 140 mm (S>300mm)

         7. Color: Silver gray or black

         8. IP rating: IP66

         9. Operational temperature range: -20°C~+45°C

        10. Operational temperature range at full performance: +5°C~+45°C

        11. Higher duty cycle (25%)

        12. Other options: Hall sensor, control system

        13. High strength metallic zinc alloy housing protects motor and gear

        14. Built-in limit switches (not adjustable)

         Model Selection:


        Drawing:
