Tubular Linear Actuator YA15

          Yar Yi's YA15 model is suitable for all applications of electric miniature linear actuators. The YA15 miniature linear actuator is the difficulty and trouble for the product designer to save the large awkward motor, space, gear and rod linear worktable.Yar Yi offers the widest range of minimatureactuators for any robot project. Yar Yi has responded to the challengie of designing sports products and has continuously reduced its size and shape. Need a customized miniature linear actuator? We can help. Our team of engineers will work closely with your business to design a custom linear actuator that meets your requirements.

        General Features

        1. Voltage of motor: 6V DC, 12V DC,
        2. Maximum load: 20N in pull/push
        3. Maximum speed at full load: 15mm/s ( load 20N)
        4. Stroke: 25mm, 50mm, 75mm, 100mm, 150mm

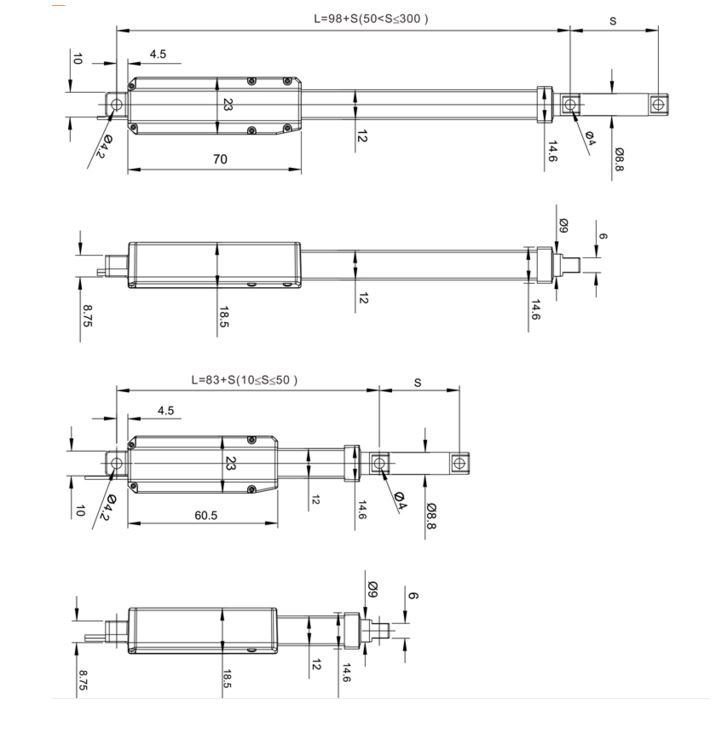

        5. Minimum dimensions: Stroke + 83 mm; Stroke+98mm
        6. Product weight: 35G
        7. Color: Silver gray or black
        8. IP rating: IP66D
        9. Operational temperature range: -45°C~+55°C
       10. Operational temperature range at full performance: +5°C~+45°C
       11. Higher duty cycle (15%),
       12. High strength metallic zinc alloy housing protects motor and gear
        13. Built-in limit switches (not adjustable)
