Tubular linear actuator YA55

            Yar Yi's YA55 series in-line linear actuators are designed for low-load industrial applications requiring up to IP68K dust and liquid ingress protection. Is a powerful product for industrial applications. The compact size allows the YA55 to install a small space in the application without having to worry about its effects. Hall sensors are optional for the YA55, allowing synchronization and position feedback, ventilation systems or food and beverage automation equipment and other industry performance ranges.

              General Features:

             1. Voltage of motor: 12V DC, 24V DC, 36V DC
             2. Maximum load: 6,000N in pull/push
             3. Maximum speed: 70mm/s ( load 200N)
             4. The slowest speed: 2mm / s (Load 6,000N)
             5. Stroke: 50~600mm
             6. Minimum dimensions: Stroke + 320 mm
             7. Color: black
             8. IP rating: IP67D
             9. Operational temperature range: -45°C~+75°C
            10. Operational temperature range at full performance: +5°C~+45°C
            11. Higher duty cycle (25%),
            12. Other options: Hall sensor, control system
            13. High-strength metal 406 carbon steel housing protects motors and gears
            14. Built-in limit switches (not adjustable)

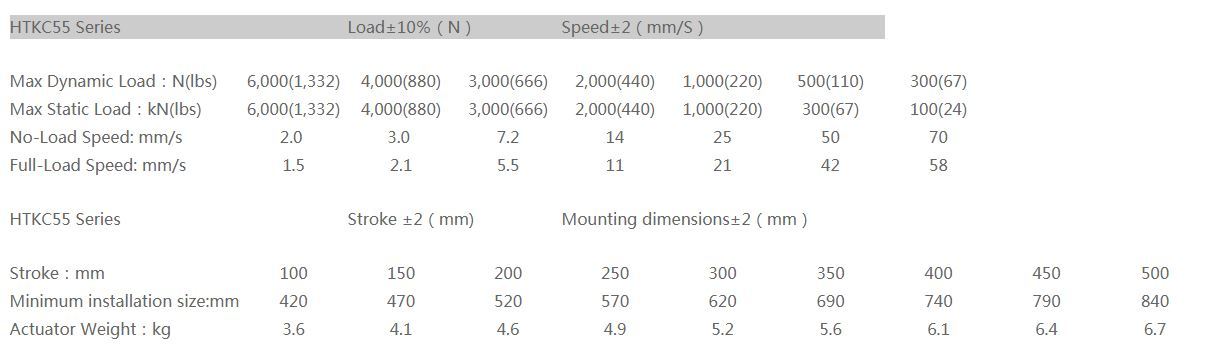

            Model Selection:

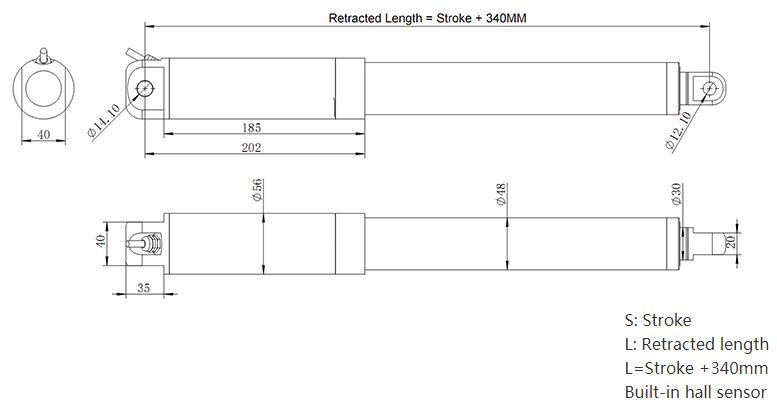

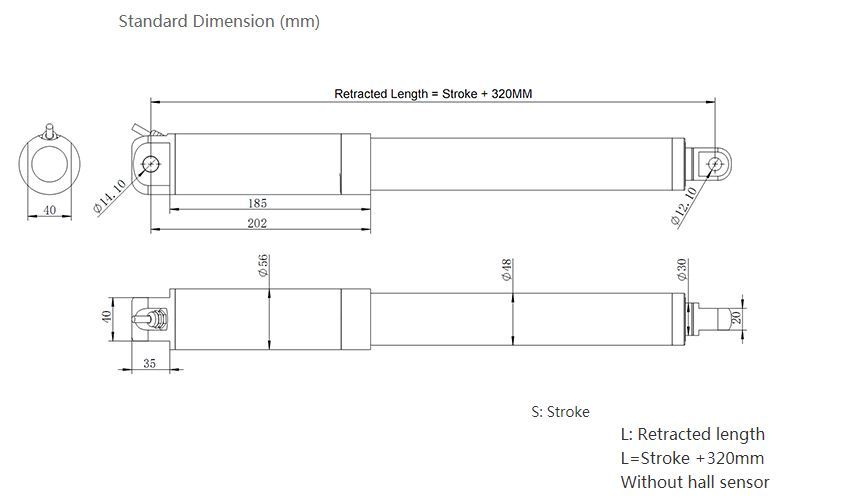

            Drawing:
