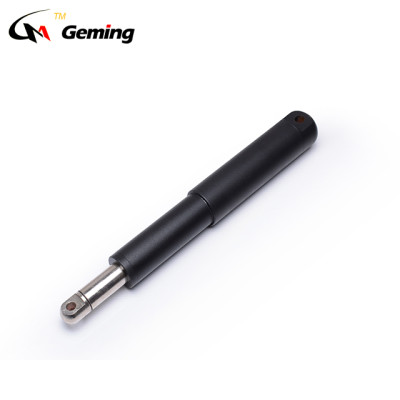

Tubular linear actuator YA75

Harsh applications require equally demanding actuator solutions. Yar Yi's YA75 series linear actuators are specially developed for solar photovoltaic tracking system applications. Solar applications require actuators to have greater lifting and retention capabilities. Realizing these requirements will not at the same time reduce the well-known Yar Yi quality. So we can also guarantee Yar Yi's YA75 series linear actuators have the least number of maintenance and service life up to 20 years, which is why we can promise a 5-year warranty.

General Features

1. Voltage of motor: 24V DC

2. Maximum load: 15,000N in push

3. Maximum speed at full load: 70mm/s ( load 500N)

4. The slowest speed at full load: 3mm / s (Load 15,000N)

5. Stroke: 30~1200mm

6. Minimum dimensions: Stroke + 500 mm(S<300 mm)

Stroke + 520 mm (S>300 mm)

7. Color: black

8. IP rating: IP67K

9. Operational temperature range: -45°C~+75°C

10. Operational temperature range at full performance: +5°C~+45°C

11. Higher duty cycle (25%)

12. Other options: Hall sensor(Dimensions=Minimum dimension+30 mm)

13. High-strength metal 406 carbon steel housing protects motors and gears

14. Stainless steel inner tube

15. Built-in limit switches (not adjustable)

Model Selection:

Drawing:
