YA730

Categories	Heavy duty linear actuator YA730
颜色	银色为主，黑色为辅
Update Time	2021-06-16

Contact Now

Favorites

Detail Information

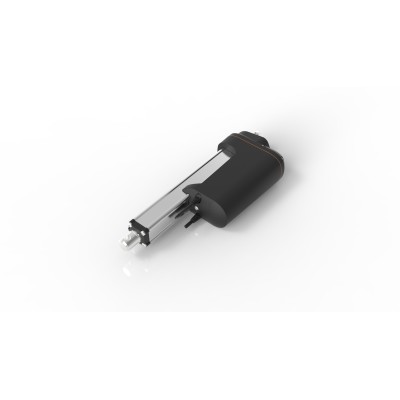

Heavy duty linear actuator YA730

YarYi's YA730 series in-line linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. Yar Yi provides well-known quality of YA730 , which assures you of long-life maintenance-free products.

General Features

1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC

2. Maximum load: 12,000N in pull/push

3. The slowest speed: 6.5mm / s (Load 12,000N)

4. Stroke: 50mm~800mm

5. Minimum dimensions: Stroke + 200 mm(S＜300mm)

Stroke + 250 mm (S＞300mm)

6. Color: Silver gray or black

7. IP rating: IP66

8. Operational temperature range: -20°C~+45°C

9. Higher duty cycle (25%)

10. Other options: Hall sensor, Potentiometer

11. High strength metallic zinc alloy housing protects motor and gear

12. Built-in limit switches (not adjustable)

Model Selection:

Drawing:
