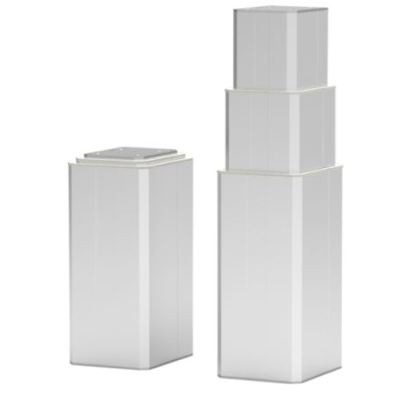

Yar Yi Lifting Column YA-B3

YA-B3 linear actuator column (Yar Yi) is one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatment units and height adjustable desk applications. The two outer tube YA-B3 formula can provide a stable operation of the lift, and can provide minimal dimensions and long stroke selection and so on.

General Features

1. Voltage of motor: 12V DC, 24V DC,

2. Maximum push force: 2,000N

3. Speed: 15mm/s

4. Stroke: 100~600mm

5. Minimum dimensions: Stroke /2+ 150 mm

6. Color: Silver gray

7. IP rating: IP54

8. Operational temperature range: +5°C~+40°C

9. Duty cycle: 10%, 2m on, 18m off

10. Other options: Hall sensor

11. High strength metallic zinc alloy housing protects motor and gear

12. Built-in limit switches (not adjustable)

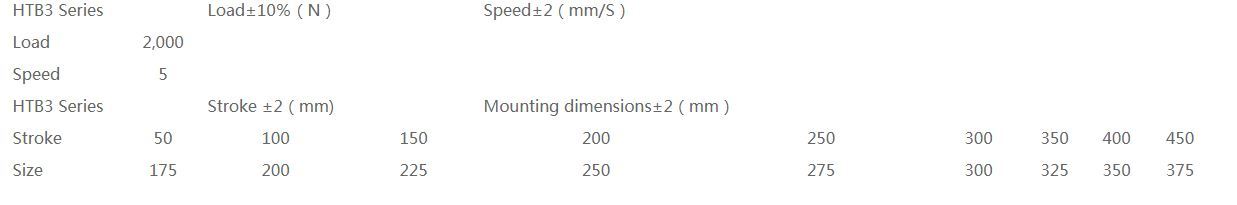

Model Selection:

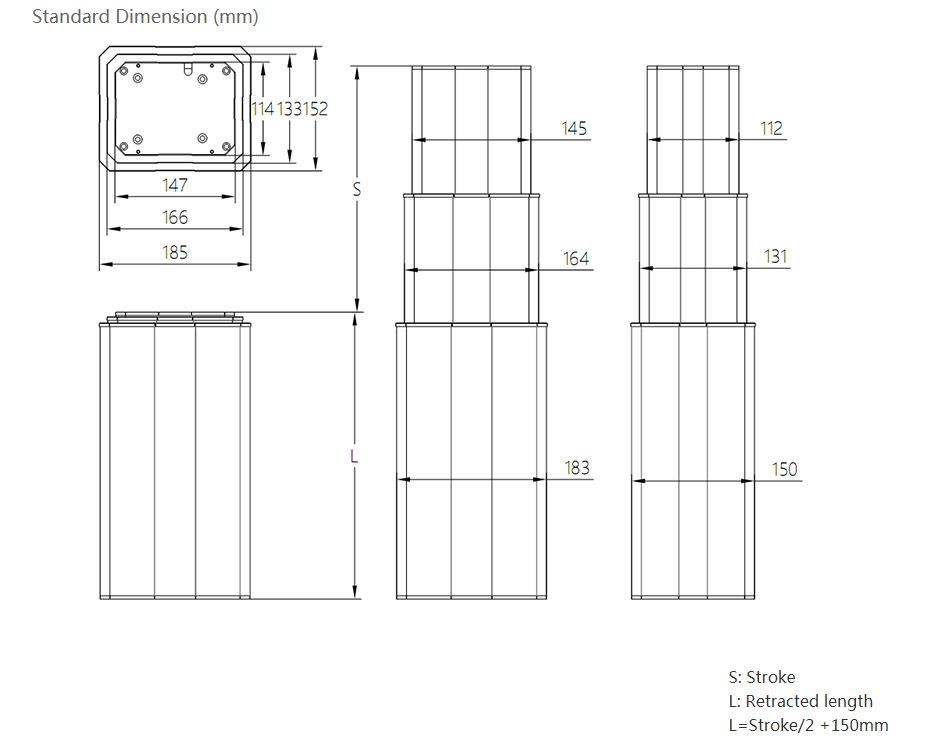

Drawing:
