YA-L82

YA-L82
CategoriesYA-L82 Lifting Column
颜色银灰色
Update TimeJune 3,2023
Detail Information

Yar Yi Lifting Column YA-L82

           Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple YA-L series lifting columns compatible with Yar Yi control boxes and YAS series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All YAK series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. YA-L82 has a two-stage telescopic outer tube.

          General Features

          1. Maximum load: 800N in push
          2. Maximum speed at full load: 38mm/s (with 800N in a push condition)
          3. Minimum installation dimension: 560mm
          4. Stroke: 650mm
          5. Highest height: 1210mm
          6. Dimension of outer tube (L*W): 80*50mm
          7. Two stage outer tube with rectangular appearance
          8. Color: Silver gray
          9. Operational temperature range: -25°C~+40°C
         10. Higher duty cycle (25%),
         11. With narrow top and wide bottom configuration
         Standard Techinical Sheet:

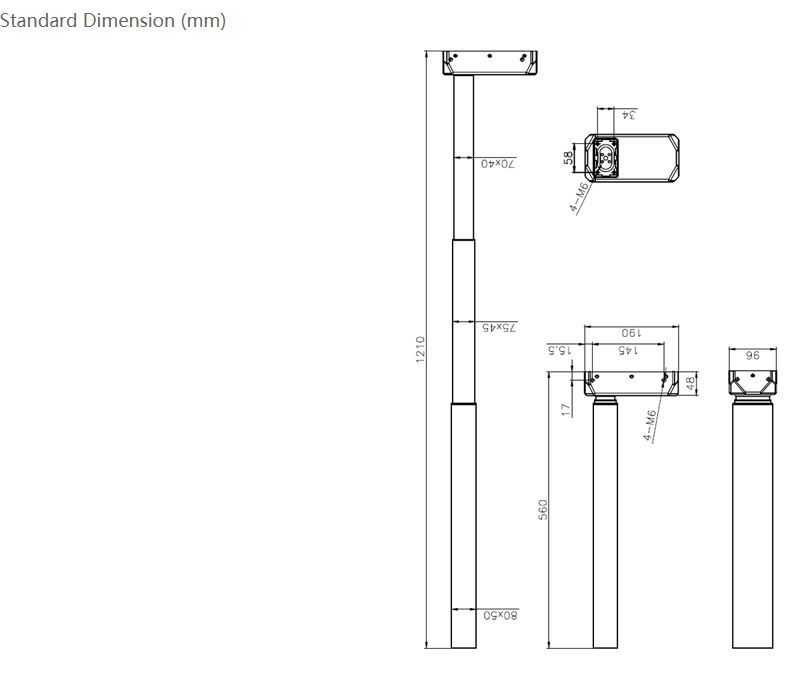

           Drawing:
