Yar Yi Lifting Column YA-L84

         Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple YA-L series lifting columns compatible with Yar Yi control boxes and YA-S series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All YA-K series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. YA-L84 has a two-stage telescopic outer tube.

        General Features

        1. Maximum load: 800N in push
        2. Maximum speed at full load: 38mm/s (with 800N in a push condition)
        3. Minimum installation dimension: 560mm
        4. Stroke: 650mm
        5. Highest height: 1210mm
        6. Dimension of outer tube (L*W): 80*50mm
        7. Two stage outer tube with rectangular appearance
        8. Color: Silver gray
        9. Operational temperature range: -45°C~+75°C
       10. Operational temperature range at full performance: +5°C~+45°C
       11. Higher duty cycle (25%),
       12. With narrow top and wide bottom configuration
        Standard Technical Sheet:

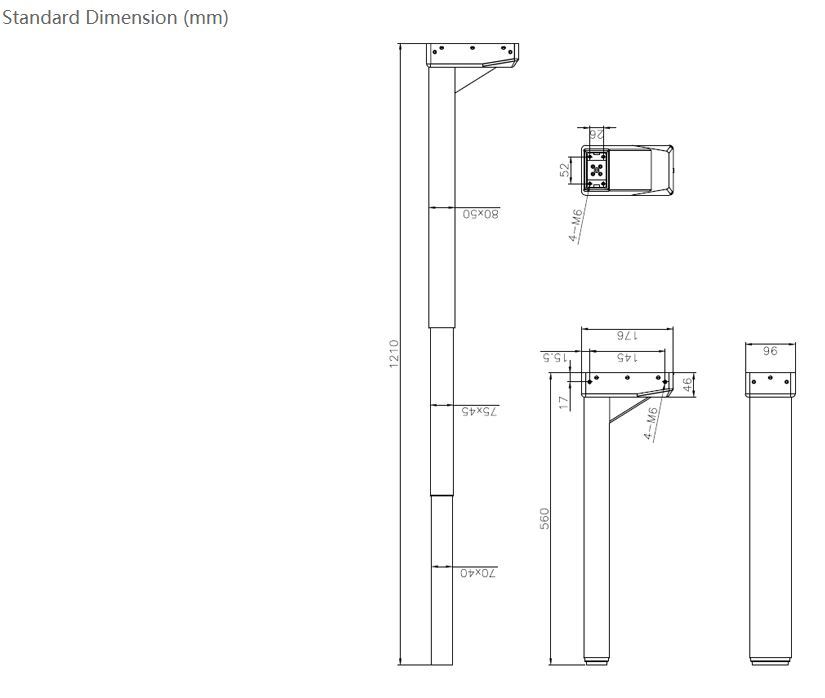

           Drawing:
