YA-L91

YA-L91
CategoriesYA-L91 Lifting column
颜色银灰色
Update Time2021-06-16
Detail Information

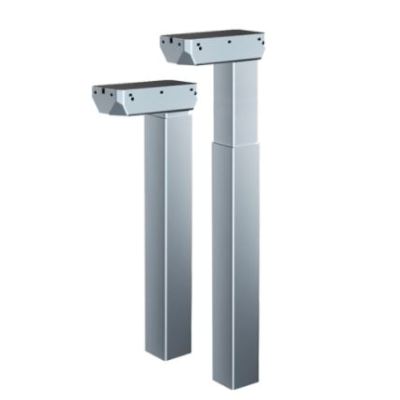

Yar Yi Lifting Column YA-L91

         Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple YA-L series lifting columns compatible with Yar Yi control boxes and YA-S series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All YA-K series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. YA-L91 has a two-stage telescopic outer tube.

         General Features:

         1. Maximum load: 800N in push
         2. Maximum speed at full load: 38mm/s (with 800N in a push condition)
         3. Minimum installation dimension: 650mm
         4. Stroke: 500mm
         5. Highest height: 1150mm
         6. Dimension of outer tube (L*W): 70*70mm
         7. Two stage outer tube with rectangular appearance
         8. Color: Silver gray
         9. Operational temperature range: -45°C~+75°C
        10. Operational temperature range at full performance: +5°C~+45°C
        11. Higher duty cycle (25%),
        12. With narrow top and wide bottom configuration
         Standard Technical Sheet:
          Drawing:
