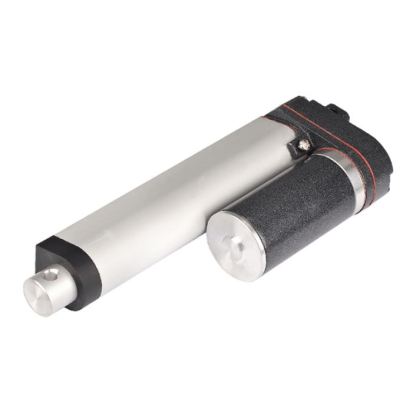

Light industry linear actuator YA850

YA850 miniature linear actuator is one section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control, application design of actuators. The products are small-capacity, compact design, protection grade IP54 Alternatively.

General Features

1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC

2. Maximum load: 750N in push

3. Maximum speed at full load: 48mm/s ( load 60N)

4. The slowest speed at full load: 5mm / s (Load 750N)

5. Stroke: 30~800mm

6. Minimum dimensions: Stroke + 100 mm

7. Color: Silver gray or black

8. IP rating: IP54D

9. Operational temperature range: -20°C~+45°C

10. Higher duty cycle (25%)

11. Other options: NO

12. Built-in limit switches (not adjustable)

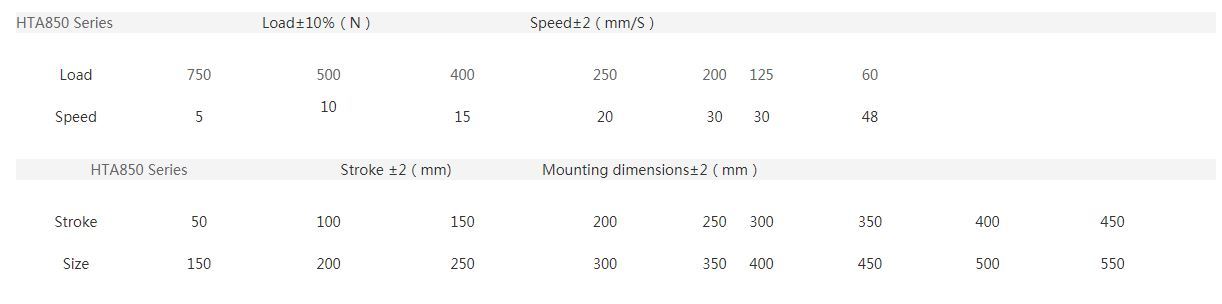

Model Selection:

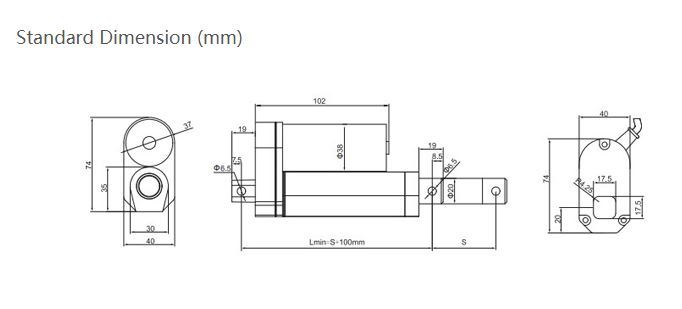

Drawing:
