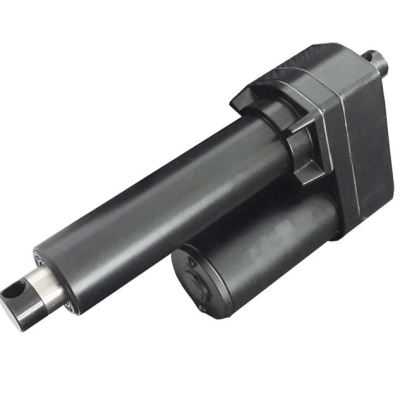

Heavy Duty Linear Actuator YA10A

YA10A industrial linear actuator is a very powerful actuator designed for various applications such as agricultural machinery, construction machinery, and industrial machinery. Configure the standard YA10A linear actuator. Due to its large capacity, well-designed, and IP65-rated protection, Yar Yi actuators are ideal for agricultural, construction, and industrial machinery plants. The biggest advantage：can adjust the stroke, installation length and product durability. All-product all-metal materials do not contain any plastic parts.

General Features:

1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC

2. Maximum load: 7,000N

3. Maximum speed: 35mm/s ( load 2,000N)

4. The slowest speed: 5mm / s (Load 7,000N)

5. Stroke: 50~800mm

6. Minimum dimensions: Stroke + 200 mm（S＜400mm）

： Stroke + 250 mm（S＞400mm）

7. Color: black

8. IP rating: IP65

9. Operational temperature range: -20°C~+45°C

10. Higher duty cycle (25%),

11. Other options: NO

12. High strength metallic zinc alloy housing protects motor and gear

13. Built-in clutch (not adjustable), no limit switch

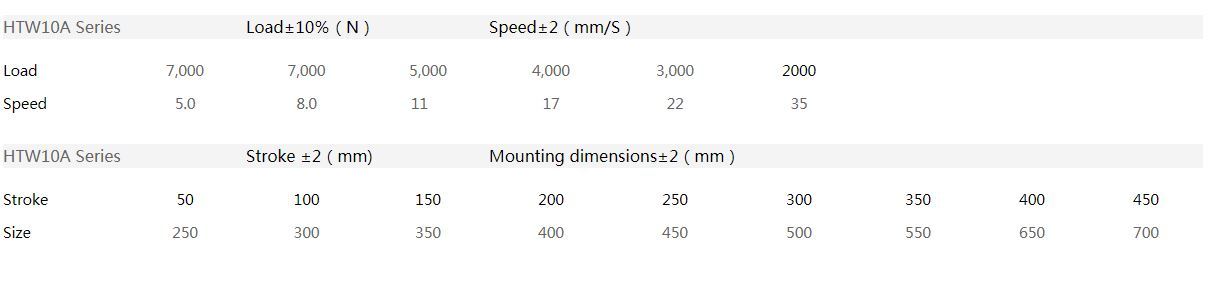

Model Selection:

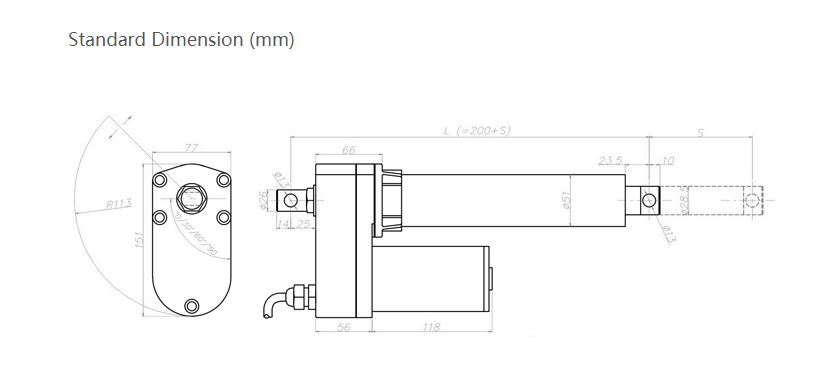

Drawing:
