Heavy duty linear actuator YA10B

          YA10B industrial linear actuator is a very powerful actuator designed for various applications such as agricultural machinery, construction machinery, and industrial machinery. Configure the standard YA10B linear actuator. Due to its large capacity, well-designed, and IP65-rated protection, Yar Yi actuators are ideal for agricultural, construction, and industrial machinery plants. The biggest advantage: can adjust the stroke, installation length and product durability. All-product all-metal materials do not contain any plastic parts.

          General Features:

          1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
          2. Maximum load: 7,000N
          3. Maximum speed at full load: 23mm/s ( load 2,000N)
          4. The slowest speed at full load: 5.5mm / s (Load 7,500N)
          5. Stroke: 50~800mm
          6. Minimum dimensions: Stroke + 250 mm(S<400mm)
                                                 : Stroke + 300 mm(S>400mm)
          7. Color: black
          8. IP rating: IP65
          9. Operational temperature range: -20°C~+45°C
         10. Higher duty cycle (25%)
         11. Other options: Potentiometer
         12. High strength metallic zinc alloy housing protects motor and gear
         13. Built-in limit switch, (not adjustable)

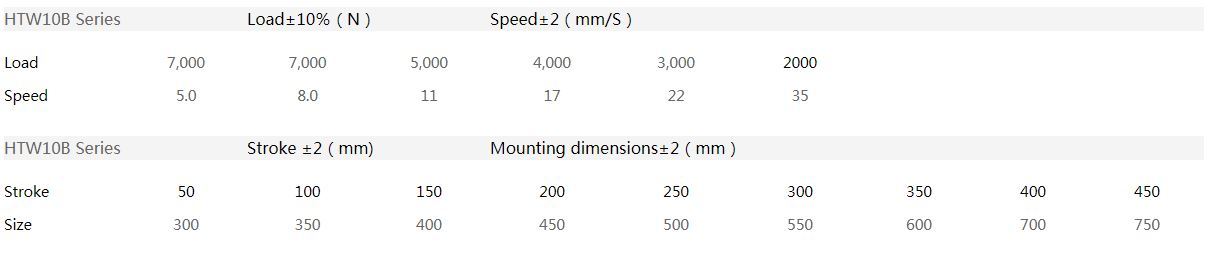

          Model Selection:

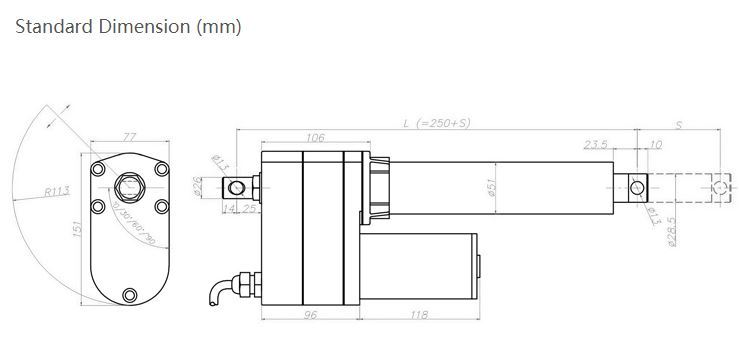

       Drawing:
