Tubular Linear Actuator YA75T

           Harsh applications require equally demanding actuator solutions.Solar applications require actuators to have greater lifting and retention capabilities.Yar Yi's YA75 series linear actuators are specially developed for solar photovoltaic tracking system applications.Yar Yi's YA5T series linear actuators have up to 20 years of service life.
            General Features:
            1. Voltage of motor: 12V DC, 24V DC
            2. Dynamic Load Capacity: 15KN
            3. Static Load Capacity: 50KN
            4. Speed: 3mm / s (Load 15,000N)
            5. Stroke: 50~1200mm
            6. Minimum dimensions: Stroke + 570 mm(with joint bearing)
            7. Color: black
            8. IP rating: IP68K
            9. Operational temperature range: -45°C~+75°C
           10. Operational temperature range at full performance: +5°C~+45°C
           11. Higher duty cycle (25%)
           12. Other options: Hall sensor
           13. High-strength metal 406 carbon steel housing protects motors and gears
           14. Built-in limit switches (not adjustable)

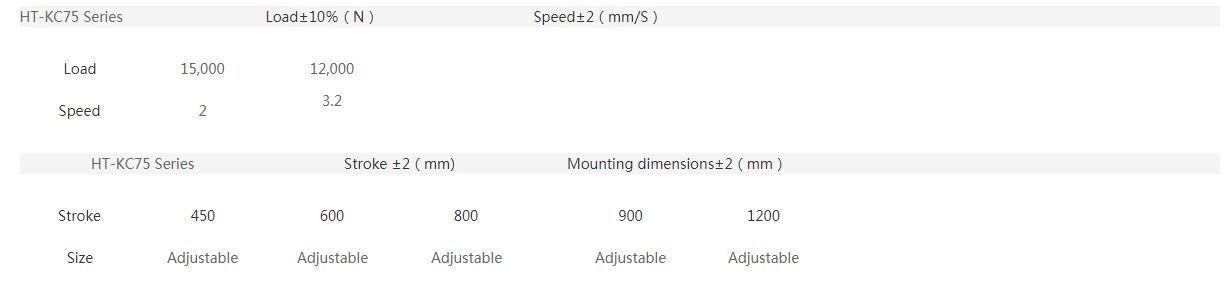

           Model Selection:
